Constantan Heating Wire For Winding

Ask Lasest Price
Brand Name :	HUONA
Model Number :	CuNi44
Price :	US$20.00
Payment Terms :	T/T,Western Union,MoneyGram,L/C
Supply Ability :	500 Tons Per Month
Delivery Time :	5-21DAYS

Add to Cart

Product Details
Company Profile

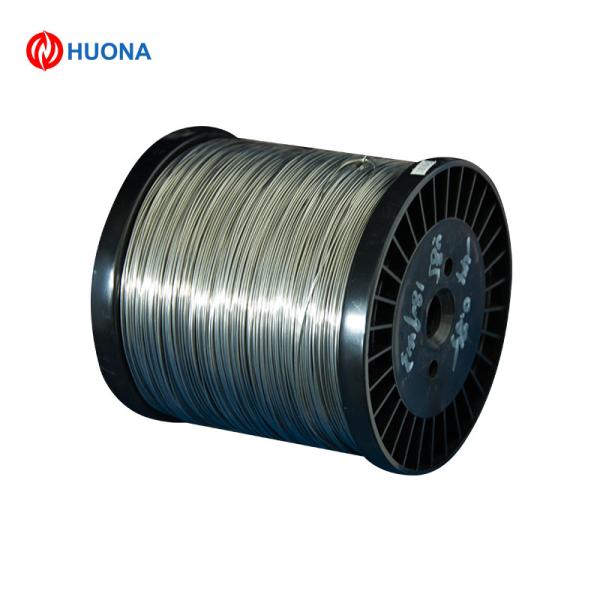

Heating Resistance Copper Nickel/CuNi44/Constantan Heating Wire For Winding

Product Description

Copper Nickel/ CuNi44/Constantan Heating Wire / Wires

Product Name	Copper Nickel Alloy CuNi Wire
Product Description	Copper Nickel Alloy is mainly made of copper and nickel. The copper and nickel can be melted together no matter what percentage. Normally the resistivity of CuNi alloy will be higher if the Nickel content is larger than Copper content. From CuNi6 to CuNi44, the resistivity is from 0.1μΩm to 0.49μΩm. That will help the resistor manufacture choosing the most suitable alloy wire.
Product Features	By the way, the Copper Nickel wire is easy to be welded and easy to be fabricated, so it can be made into many forms and widely used in all areas.

Specification

Wire	D=0.03mm~8mm
Ribbon	Width=0.4mm-40mm, Thickness=0.03mm-2.9mm
Strip	Width=8mm-250mm, Thickness=0.1mm-3mm
Foil	Width=6mm-120mm, Thickness=0.003mm-0.1mm
Bar	Width=8mm-100mm, Thickness=50mm-1000mm
Other sizes	Available Upon Your Requirements

The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Copper Nickel/ CuNi44/Constantan Heating Wire / Wires

Copper Nickel/ CuNi44/Constantan Heating Wire / Wires
