Product Description

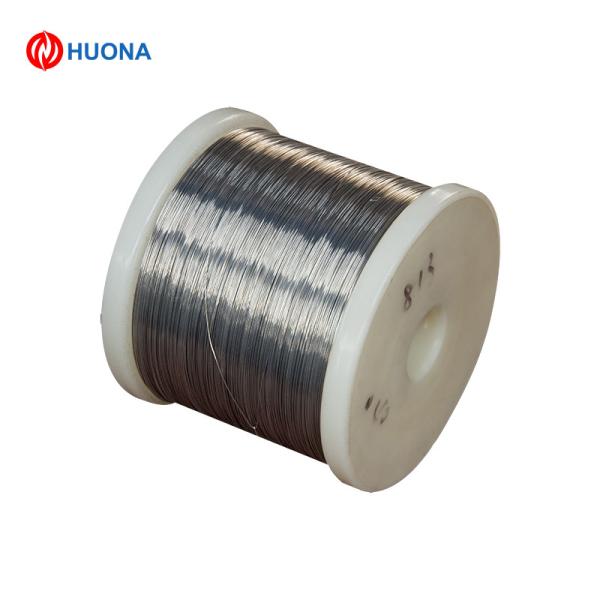

0.025mm to 10mm 99.6% Nickel Wire N6 / Ni200 Pure Nickel Wire Used
For Lighting Source
Tankii Pure nickel wire has good high temperature strength, the
characteristics of low resistivity.
Tankii Nickel wire series products are: nickel wire, pure nickel
wire, nickel wire, nickel wire, 0.025 mm N4 interchange nickel
wire, nickel N6 wire;Nickel wire highest purity can reach
99.99%!!!!!!.The finest can reach 0.025 mm!
Pure nickel wire production cycle: 3 to 20 days as per the order
qty
The state: hard state/half hard/soft state
The characteristics of pure nickel wire
1, Good solderability, high electrical conductivity, appropriate
linear expansion coefficient
2, Good high temperature strength, low resistivity
3, High melting point, corrosion resistance, good mechanical
performance, under the hot cold state has good pressure
workability, degassing, suitable for radio, electric light source,
machinery manufacturing, chemical industry, are important
structural materials in the vacuum electronic devices.
Application of pure nickel wire:
Pure nickel wire is suitable for radio, lighting, mechanical
manufacture, chemical industry, is of important structural
materials in the vacuum electronic devices, can also be as thread
lead in the bulb.
Nickel wire are made by advanced vacuum melting process.and by
forgingrollingannealing and drawing.The products are used in
electric apparatus,lead for lamp and chemical machinery.
Physical Data
Density | 8.89g/cm3 |
Specific Heat | 0.109(456 J/kg.℃) |
Electrical Resistivity | 0.096×10-6ohm.m |
Melting Point | 1435-1446℃ |
Thermal Conductivity | 70.2 W/m-K |
Mean Coeff Thermal Expansion | 13.3×10-6m/m.℃ |
Typical Mechanical Properties
Mechanical Properties | Nickel 200 |
Tensile Strength | 462 Mpa |
Yield Strength | 148 Mpa |
Elongation | 47% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire |
ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
