0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element

Ask Lasest Price
Brand Name :	HUONA
Model Number :	0cr23al5
Certification :	ISO9001, RoHS
Price :	$6.5/KG-$7.5/ KG
Payment Terms :	T/T
Supply Ability :	300 Ton/Month
Delivery Time :	Around a week

Add to Cart

Product Details
Company Profile

0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element

Basic Info.

Model NO.

0Cr23Al5

Carbon Content

PCD

Hole

Chemical Composition

0cr21al6

Product Name

0cr23al5 Furnaces Element

Characteristics

High Resistivity, Good Oxidation Resistance

The Highest Use Temperature

1350c

Density

7.1g/cm3

Resisivity

1.42

Elongation

>12%

Sample

Free

Thickness

0.05-2mm

Width

0.2-6mm

Application

Dynamic Braking Resistors, Heating Resistor

Max Coil Weight

15 Tons

Advantage

Large Volume Weight,Uniform Resistance

Type

Winding, Z-Shaped, Spiral

Standard

GB/T 1234-2010

Transport Package

Wooden Cases or Cartons

Specification

0.05X0.2-2.0X6mm

Trademark

HUONA

Origin

Shanghai

HS Code

72209000

Production Capacity

300 Tons / Month

Product Description

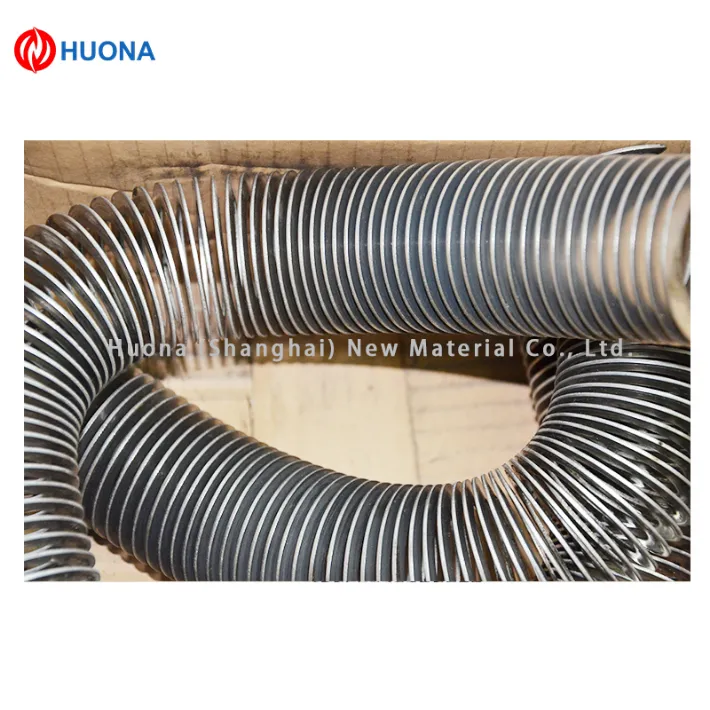

0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces element

When Inquiry, pls inform us below sizes

1. d1: wire diameter
2. D1: coil outer diameter
3. S1: distance from middle to middle of two coil
4. L1: heating length
5. Voltage and wattage, or resistance

Alloy material	Chemical composition %
	C	P	S	Mn	Si	Cr	Ni	Al	Fe	others
	max(≤)				Si	Cr	Ni	Al	Fe	others
1Cr13Al4	0.12	0.025	0.025	0.7	≤1.00	12.5-15.0	-	3.5-4.5	Rest	-
0Cr15Al5	0.12	0.025	0.025	0.7	≤1.00	14.5-15.5	-	4.5-5.3	Rest	-
0Cr25Al5	0.06	0.025	0.025	0.7	≤0.60	23.0-26.0	≤0.60	4.5-6.5	Rest	-
0Cr23Al5	0.06	0.025	0.025	0.7	≤0.60	20.5-23.5	≤0.60	4.2-5.3	Rest	-
0Cr21Al6	0.06	0.025	0.025	0.7	≤1.00	19.0-22.0	≤0.60	5.0-7.0	Rest	-
0Cr19Al3	0.06	0.025	0.025	0.7	≤1.00	18.0-21.0	≤0.60	3.0-4.2	Rest	-
0Cr21Al6Nb	0.05	0.025	0.025	0.7	≤0.60	21.0-23.0	≤0.60	5.0-7.0	Rest	Nb add0.5
0Cr27Al7Mo2	0.05	0.025	0.025	0.2	≤0.40	26.5-27.8	≤0.60	6.0-7.0	Rest

Main technical characteristics of FeCrAl Alloy:

Brand Property		1Cr13Al4	1Cr21Al4	0Cr21Al6	0Cr23Al5	0Cr25Al5	0Cr21Al6Nb	0Cr27Al7Mo2
Major chemical component%	Cr	12.0-12.5	17.0-21.0	19.0-22.0	20.5-23.5	23.0-26.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	2.0-4.0	5.0-7.0	4.2-5.3	4.5-6.5	5.0-7.0	6.0-7.0
	Fe	Balance	Balance	Balance	Balance	Balance	Balance	Balance
	Re	Appropriate	Appropriate	Appropriate	Appropriate	Appropriate	Appropriate	Appropriate
							Addition Nb:0.5	Addition Mo:1.8-2.2
Component max. use temperature		950	1100	1250	1250	1250	1350	1400
Melting Point		1450	1500	1500	1500	1500	1510	1510
Density g/cm3		7.40	7.35	7.16	7.25	7.10	7.10	7.10
Resistivity μΩ·m,20		1.25±0.08	1.23±0.06	1.42±0.07	1.35±0.06	1.45±0.07	1.45±0.07	1.53±0.07
Tensile Strength Mpa		588-735	637-784	637-784	637-784	637-784	637-784	684-784
Extension rate%		16	12	12		12	12	10
Repeated bending frequency				5	5	5	5	5
Fast lift h/		-			80/1300	80/1300		50/1350
Specific Heat J/g.		0.490	0.490	0.520	0.460	0.494	0.494	0.494
Heat Conduction Coefficient KJ/M.h		52.7	46.9	63.2	60.1	46.1	46.1	45.2
Linear expansion coefficient aX10-6/ (20-1000)		15.4	13.5	14.7	15.0	16.0	16.0	16.0
Hardness HB		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Microstructure		Ferritic	Ferritic	Ferritic	Ferritic	Ferritic	Ferritic	Ferritic
Magnetic		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element
