Precision 3J53 Elastic Alloy Superior Elasticity Excellent Resistance For Aerospace

Precision 3J53 Elastic Alloy Superior Elasticity & Excellent Resistance For Aerospace & Instrumentation

Basic Info.

Model NO.	3J53	Purity	41%
Alloy	Alloy	Type	Nickel Alloy
Powder	Not Powder	Density (g/cm3)	8.1
Electrical Resistivity at	1.0	Melting Point	1480
Sample	Support	Diameter	1.2mm-6mm
Surface	Bright	OEM	Yes
Transport Package	Standard Export Packing	Specification	have different sizes
Trademark	HUONA	Origin	China
HS Code	7505220000	Production Capacity	100ton/Month

Product Description

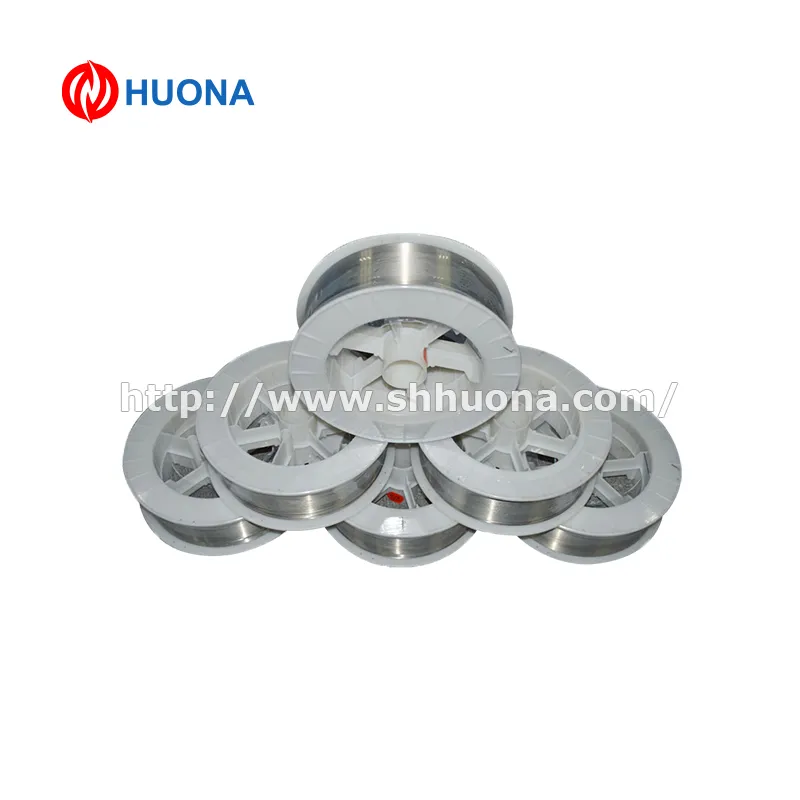

3j53 Elastic Alloy Wire Elastic Alloy

Ni42CrTi belongs to Fe - Ni - Cr - Ti is ferromagnetic precipitation strengthening constant elastic alloy.
After solid solution treatment, plasticity is good, hardness is low, easy to processing molding.
Solid solution or after the cold strain aging treatment, reinforcement and good constant elastic properties.

Ni42CrTi alloy with small temperature coefficient, high mechanical quality factor, good wave velocity uniformity,

high strength and modulus of elasticity and smaller elastic aftereffect and lag, low linear expansion coefficient,

good processing properties and good corrosion resistance and other excellent properties.

Chemical composition

composition	%	Fe	Ni	Cr	Ti	Al	C	Mn	Si	p	S
content	min	Bal	41.5	5.2	2.0	0.5
content	max	Bal	43.5	5.8	2.7	0.8	0.05	0.8	0.8	0.02	0.02

Typical Physical properties

Density (g/cm3)		8.1
Electrical resistivity at 20ºC(OMmm2/m)		1.0
Melting point ºC		1480
Thermal conductivity, λ/ W/(m*ºC)		12.98
Elastic Modulus, E/ Gpa		176~206

Application overview and special requirements	Ni42CrTi alloy finds extensive application in the aviation field. It is predominantly employed in the fabrication of elastic sensitive elements that endure tension, pressure, and bending stress, as well as frequency components operating in longitudinal moment or bending vibration modes. Illustrative examples include various sensors demanding a constant elastic modulus (or frequency), such as pressure sensors, signal torque components, and the tops of screws used in surrounding structures. Moreover, this alloy can be utilized to manufacture items like film boxes, diaphragms, shock tubes, corrugated tubes, precision springs, wire pieces, and super mechanical filters.
