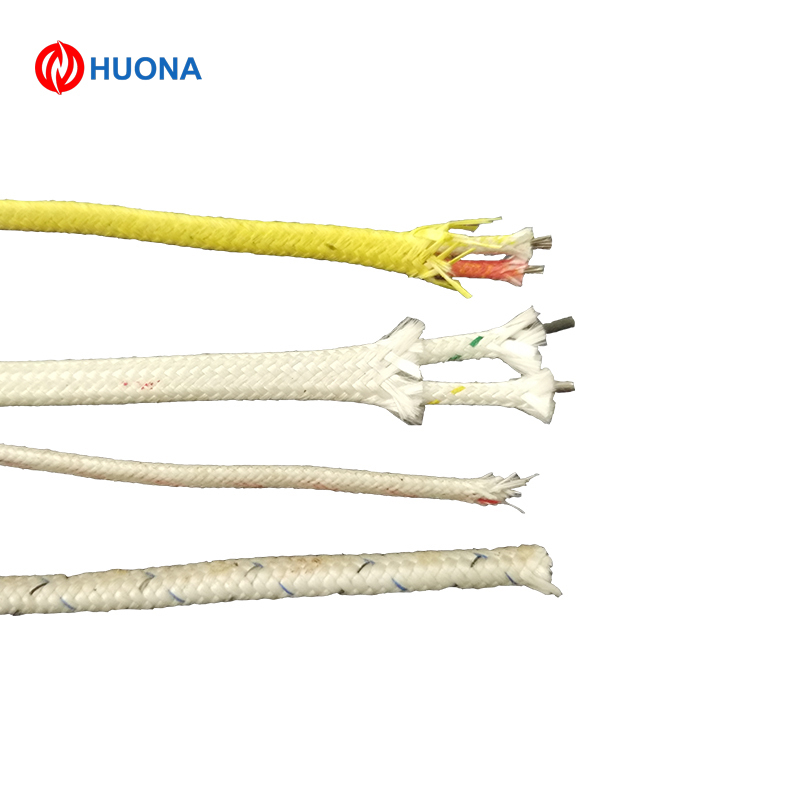

Type K 2x0.81mm Thermocouple Extension Wire Cable
Type K( CHROMEL vs ALUMEL) is used in oxidizing, insert or dry
reducing atmospheres.Exposure to Vacuum limited to short time
periods. Must be protected from sulfurous and marginally oxidizing
atmospheres.Reliable and accurate at high temperatures.
1. Style:Extension Wire
2. Thermocouple extension wire
Thermocouple wire Classification
1. Thermocouple level (high temperature level). This type of
thermocouple wire is mainly suitable for thermocouple type K, J, E,
T, N and L and other high temperature detection instrument,
temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of
thermocouple wire is mainly suitable for compensating cable and
extension wire of various thermocouples of type S, R, B, K, E, J,
T, N and L, heating cable, control cable and so on.
| Thermocouple Type | ANSI Color Code | Initial Calibration Tolerances |
| Wire Alloys | Calibration | +/-
Conductor | Jacket | Temperature Range | Standard
Limits | Special
Limits |
Iron(+) vs.
Constantan(-) | J | White/Red | Brown | 0°C to +285°C
285°C to +750°C | ±2.2°C
± .75% | ±1.1°C
± .4% |
CHROMEL(+) vs.
ALUMEL(-) | K | Yellow/Red | Brown | -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C | ± 2%
±2.2°C
±2.2°C
± .75% | ±1.1°C
± .4% |
Copper(+) vs.
Constantan(-) | T | Blue/Red | Brown | -200°C to -65°C
-65°C to +130°C
130°C to +350°C | ± 1.5%
±1°C
± .75% | ± .8%
± .5°C
± .4% |
CHROMEL(+) vs.
Constantan(-) | E | Purple/Red | Brown | -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C | ± 1%
±1.7°C
±1.7°C
± .5% | ±1°C
±1°C
± .4%
± .4% |
Thermocouple variety and index
| Thermocouple Variety and Index |
Variety |
Type |
Measurement Range(°C) |
NiCr-NiSi |
K |
-200-1300 |
NiCr-CuNi |
E |
-200-900 |
Fe-CuNi |
J |
-40-750 |
Cu-CuNi |
T |
-200-350 |
NiCrSi-NiSi |
N |
-200-1300 |
NiCr-AuFe0.07 |
NiCr-AuFe0.07 |
-270-0 |

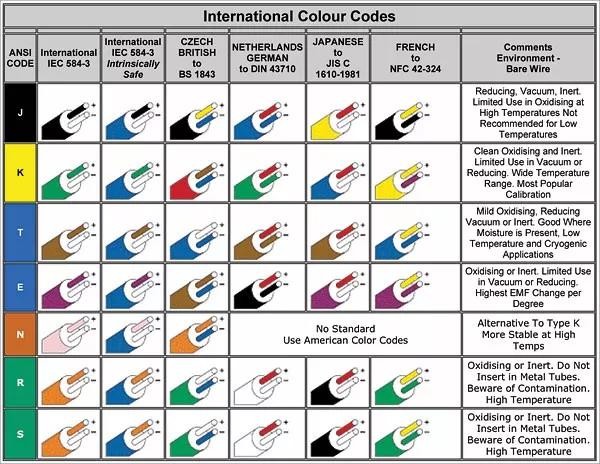

Globle thermocouple color standards:
Products
FAQ:
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you
want.
If we do not have, for spool wire, we can produce 1 spool, about
2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also
ok.
3. Customer do not have express account. How will us arrange the
delivery for sample order?
Just need to provide your address information, we will check the
express cost, you can arrange the express cost together with sample
value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery
and total amount. Let's talk more in details after getting your
detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can
provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool
within 24 hours. No matter working day or holidays.
