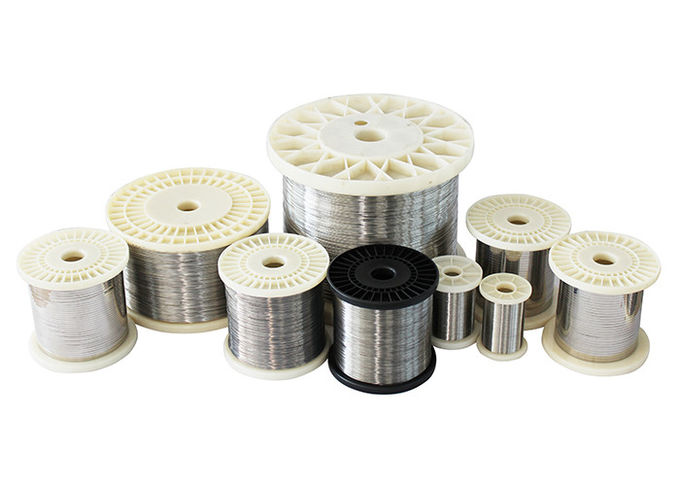

• Thermocouple Wire

Type N Thermocouple (Nickel-Chromium-silicon / Nickel-Silicon-Magnesium):

The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. The Type N thermocouple is the newest addition to the ISA family. It was developed to be used under the same conditions as a Type K.

Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K.

The negative element, or NN, of a Type N thermocouple can be described by any of the following names: Nisil, nickel-silicon, or, HAI-NN1. The positive element, or NP, of a Type N thermocouple can be described by any of the following names: Nicrosil, nickel-chromium-silicon, or HAI-NP1.

• Thermocouple Wire

• ​Standards

Detailed Parameter of thermocouple wire

Working Temperature Range

• Size range

Wire: 0.12 to 8.0 mm.

• Application of thermocouple:

• Heating - Gas burners for ovens

• Cooling - Freezers

• Engine protection - Temperatures and surface temperatures

• High temperature control - Iron casting

• Type N Temperature Range:

• Maximum continuous operating temperature: up to 2,300F (1,260C)

• Short term use: 2,336F (1,280C)

• Thermocouple grade wire, -454 to 2300F (-270 to 1,260C)

• Extension wire, 32 to 392F (0 to 200C)

• Type N Accuracy (whichever is greater):
• Standard: +/- 2.2C or +/- .75%
• Special Limits of Error: +/- 1.1C or 0.4%​
