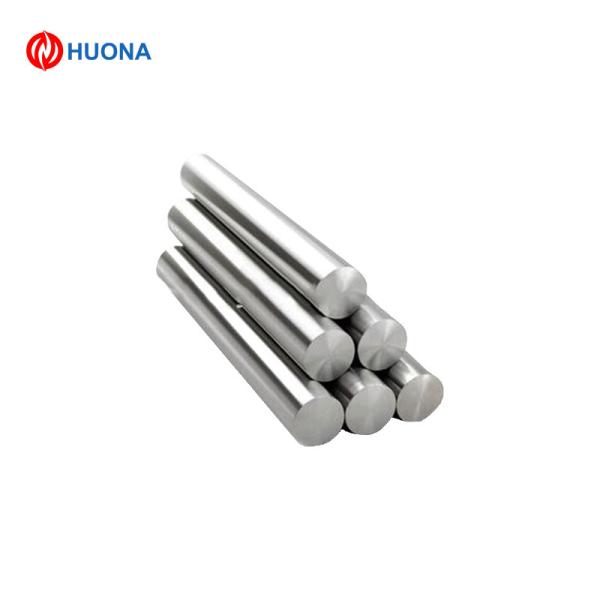

    Invar 36 Nickel Iron Cobalt Alloy Rod 4j36 Uns K93600 Uns K93603 1.3912 Ni36 Uns K94610

    Ask Lasest Price
    Brand Name : HUONA
    Model Number : WIRE
    Certification : ISO9001
    Price : US$12.00-45.00
    Payment Terms : T/T
    Supply Ability : 1000kg Per Week
    Delivery Time : WEEK
    • Product Details
    • Company Profile

    Invar 36 Nickel Iron Cobalt Alloy Rod 4j36 Uns K93600 Uns K93603 1.3912 Ni36 Uns K94610

    Invar 36 4j36 Uns K93600 Uns K93603 1.3912 Ni36 Nickel Alloy Precision Kovar 4j29 Coil Uns K94610 Nickel Iron Cobalt Alloy Rod

    Product Description

    Invar 36, also known as 4J36, is a nickel-iron alloy containing approximately 36% nickel and 64% iron, renowned for its extremely low coefficient of thermal expansion (CTE). This unique property makes it the ideal material for applications requiring dimensional stability across a range of temperatures.

    As wire, Invar 36 is commonly used in hermetic sealing, semiconductor packaging, aerospace structures, and precision instruments where thermal expansion must be tightly controlled.

    Technical Specifications:

    PropertyValue
    Alloy NameInvar 36 / 4J36
    Chemical CompositionNi: 36% ±0.5%, Fe: Balance
    CTE (20–100°C)~1.2 × 10⁻⁶ /°C
    Density~8.1 g/cm³
    Tensile Strength450–650 MPa (annealed)
    Yield Strength≥ 240 MPa
    Elongation≥ 30%
    Hardness~160 HV (annealed)
    Electrical Resistivity~0.78 μΩ·m
    Magnetic PropertiesMagnetic at room temperature
    Melting Point~1425°C
    Wire Diameter Range0.02 mm – 3.0 mm (custom available)
    Surface ConditionBright / Annealed / Oxidized
    PackagingSpools, coils, or customized on request

    Precision alloys are metal materials with special physical properties (such as magnetic, electrical, thermal and other properties). The vast majority of precision alloys are based on ferrous metals, and only a few are based on non-ferrous metals. Usually include magnetic alloys (see magnetic materials), elastic alloys, expansion alloys, thermal bimetals, electrical alloys, hydrogen storage alloys (see hydrogen storage materials), shape memory alloys, magnetostrictive alloys (see magnetostrictive materials), etc.


    Product Parameters

    Soft magnetic alloys are a class of alloys with high permeability and low coercivity in weak magnetic fields. According to the different elements that make up the alloy, it can be divided into electromagnetic pure iron (industrial pure iron), iron-silicon alloy, iron-nickel alloy, iron-aluminum alloy, iron-silicon-aluminum alloy and iron-cobalt alloy, etc.1J06,1J12,1J17,1J18,1J22,1J30,1J36,1J38,1J46,1J50,1J51,1J54,1J76,1J77,1J79,1J80,1J85,1J87

    Permanent magnet alloy not only has high hardness and mechanical properties, but also has strong anti-demagnetization ability, high coercivity value (greater than 20kA/m), magnetic "hard" and other characteristics, so it is also called hard magnetic alloy.2J04,2J07,2J09,2J10,2J31,2J53,2J84,2J85Elastic alloys include high elastic alloys and constant elastic alloys. It is used to make elastic elements such as elastic sensitive elements, energy storage elements and frequency elements in precision instruments.3J01,3J21,3J53Expansion alloys(Invar Alloy) are divided into Kovar alloys, ceramic sealing alloys, low expansion alloys, and constant expansion alloys. Widely used in electronic industry, precision measuring tools, precision instruments and low temperature engineering and other fields.4J28,4J29,4J32,4J33,4J36,4J40,4J42,4J50
    Precision alloys with nickel, chromium, aluminum and iron as the main components, the resistivity is about three times higher than that of manganese copper, and has a lower temperature coefficient of resistance and low thermal potential to copper, with good long-term resistance stability and resistance. Oxidation properties.
    It is suitable for making precision resistance elements in various measuring instruments and meters, making precision micro-resistance elements and strain gauges.6J10,6J15,6J20,6J22,6J23,6J24

    expansion alloy
    GradeC≤S≤P≤MnSiNiCrCuAlFe
    6J10≤0.05≤0.01≤0.01≤0.3≤0.2nI+cO rem9-10≤0.2≤0.4
    6J15≤0.05≤0.02≤0.03≤1.50.4-1.355-6115-18≤0.3rem
    6J20≤0.05≤0.01≤0.01≤0.70.4-1.3rem20-23≤0.3≥1.5
    6J22≤0.04≤0.01≤0.010.5-1.5≤0.2rem19-21.52.7-3.22-3
    6J23≤0.04≤0.01≤0.010.5-1.5≤0.2rem19-21.52-32.7-3.2
    6J24≤0.04≤0.01≤0.011.0-3.00.9-1.5rem19-21.52.7-3.2≤0.5

    Constantan alloy
    Manganese Copper Alloy

    BrandNiMnCu
    Constantan alloy6J4039-411-2Rest
    Manganese Copper Alloy6J122-311-13Rest

    Detailed Photos
